Pixel detector - Phase 2

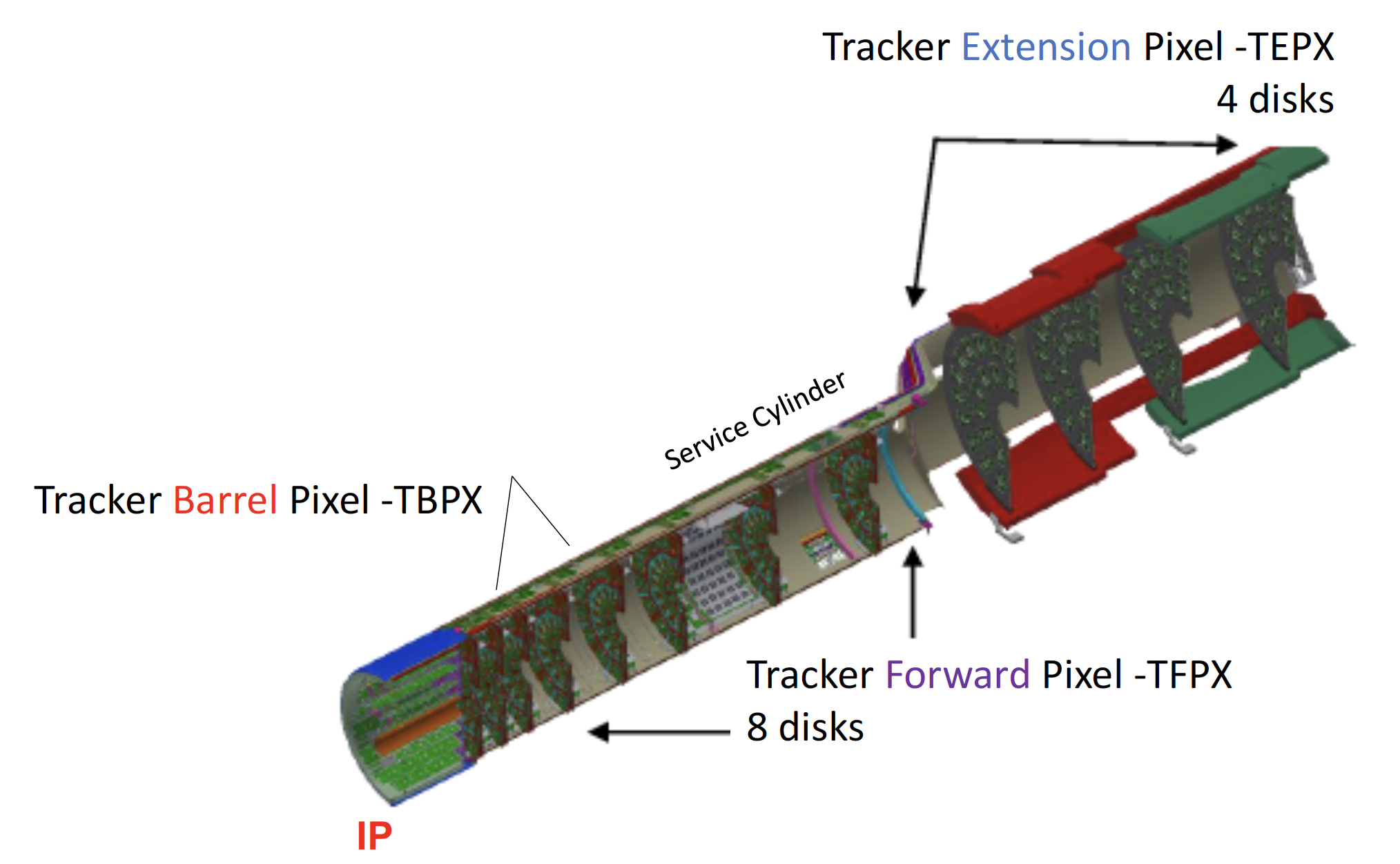

We are currently designing and prototyping the next phase of the pixel detector (phase-2), to run in the High-Luminosity LHC, which will take data from 2027 to 2040.

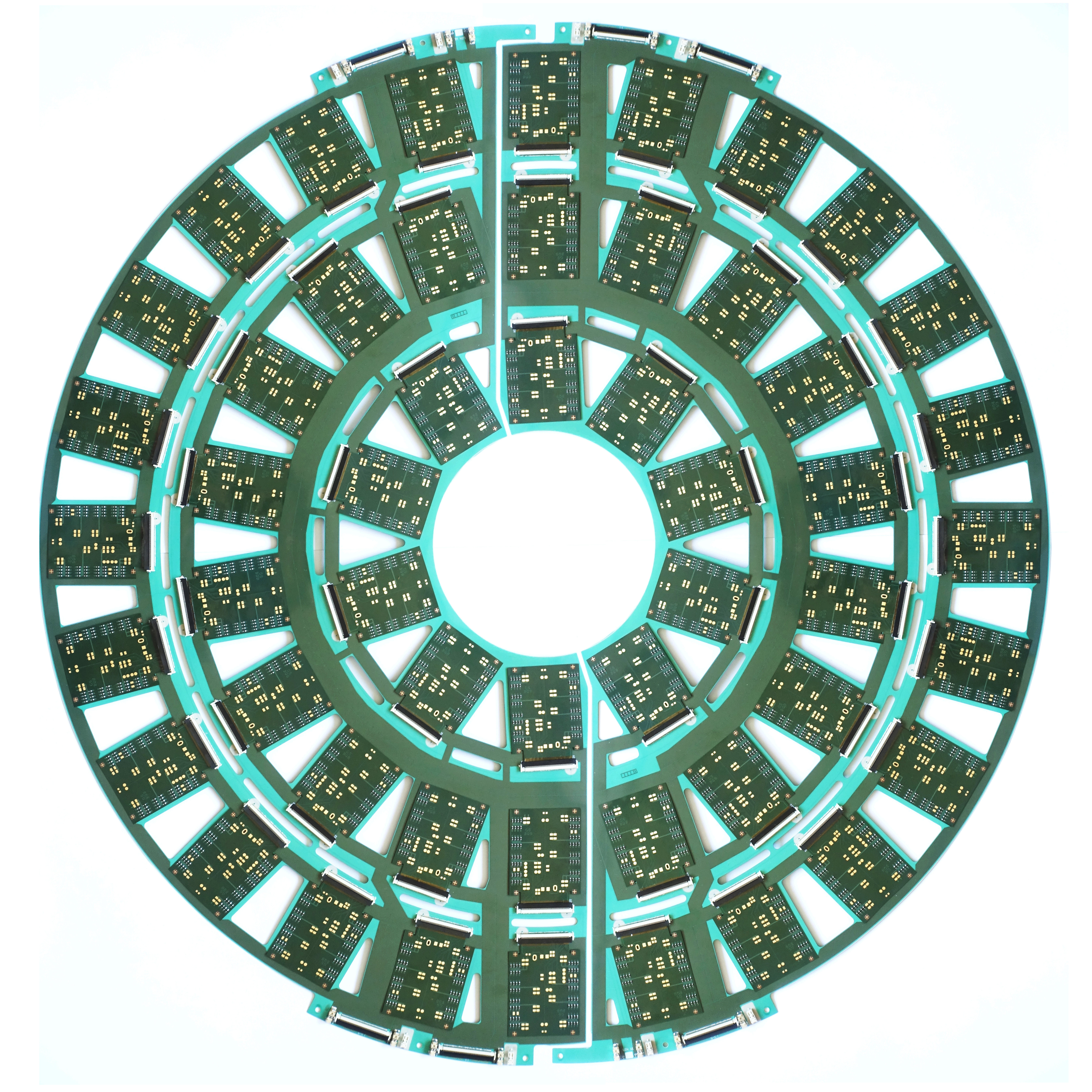

Detector module prototype disk for the TEPX

TEPX disk

UZH has designed and built this prototype PCB disk of detector modules for the TEPX detector (Tracker Extended PiXel detector).  The PCB transfers data and control signals as well as low-voltage and high-voltage power.  We have tested heat dissipation, high voltages, and signal integrity.
